English | 简体中文

Because of the consistency of the front-end framework, when we write related use cases for form operations, select elements and operate, we often find that there is a strong regularity, so we have written corresponding Cypress functions for most of the form operations. It greatly reduces the difficulty of writing test cases. The following will give a detailed description of the main form operation functions.

Note: The functions written are based on the principle that the operation of a form item can be completed completely

Click the button operation

closeNotice
- Close the prompt message of successful operation in the upper right corner
waitFormLoading
- Wait for the form request to complete
- After the form is filled in and verified, click the confirm button to initiate a corresponding request to the server. At this time, the confirm button of the form item will be in the state of Loading
- Using this function, instead of cy.wait(seconds), can more effectively ensure that the synchronization request has been processed completely, thereby ensuring the prerequisites for subsequent use cases
clickFormActionSubmitButton
- Click the confirm button of the confirm form and wait for the request to complete
clickModalActionSubmitButton
- Click the confirm button in the pop-up form and wait for the request to complete
clickModalActionCancelButton
- Click the cancel button of the pop-up form
clickConfirmActionSubmitButton
- Click the confirmation button of the confirmation form, wait for the request to complete, and close the prompt message that the request is successful
- Parameter waitTime, the waiting time after closing the prompt message

checkDisableAction

If some data does not meet the requirements, an error will pop up when using batch operations. This function verifies that the data does not meet the operation requirements, and closes the error prompt

Take the locked instance as an example: test/e2e/integration/pages/compute/instance.spec.js

After locking, it no longer supports startup, shutdown, and restart operations

it('successfully lock', () => {
  cy.tableSearchText(name)
    .clickConfirmActionInMoreSub('Lock', 'Instance Status')
    .wait(10000);
  cy.tableSearchText(name)
    .selectFirst()
    .clickHeaderActionButtonByTitle('Start')
    .checkDisableAction(2000)
    .clickHeaderActionButtonByTitle('Stop')
    .checkDisableAction(2000)
    .clickHeaderActionButtonByTitle('Reboot')
    .checkDisableAction(2000);
});

clickStepActionNextButton

Click the Next/Confirm button of the step-by-step form

Take the create instance use case as an example: test/e2e/integration/pages/compute/instance.spec.js

A total of 3 clicks on the next step and 1 confirmation button

it('successfully create', () => {
  cy.clickHeaderActionButton(0)
    .url()
    .should('include', `${listUrl}/create`)
    .wait(5000)
    .formTableSelect('flavor')
    .formTableSelect('image')
    .formSelect('systemDisk')
    .formAddSelectAdd('dataDisk')
    .formSelect('dataDisk')
    .wait(2000)
    .clickStepActionNextButton()
    .wait(5000)
    .formTableSelectBySearch('networkSelect', networkName, 5000)
    .formTableSelectBySearch('securityGroup', 'default', 5000)
    .wait(2000)
    .clickStepActionNextButton()
    .formInput('name', name)
    .formRadioChoose('loginType', 1)
    .formInput('password', password)
    .formInput('confirmPassword', password)
    .wait(2000)
    .clickStepActionNextButton()
    .wait(2000)
    .clickStepActionNextButton()
    .waitFormLoading()
    .url()
    .should('include', listUrl)
    .closeNotice()
    .waitStatusActiveByRefresh();
});

clickStepActionCancelButton
- Click the cancel button of the step-by-step form
- Take image create instance test/e2e/integration/pages/compute/image.spec.jsas example
  - Only verify that you can successfully enter the create instancepage, and then click the cancel button to complete the use case
```
it('successfully create instance with cancel', () => {
  cy.tableSearchText(name)
    .clickActionInMore('Create Instance')
    .wait(2000)
    .clickStepActionCancelButton();
});
```

Operations on form

Looking at the structure and style of the elements through the page, I found that all form items have an id, And corresponding to the name property of the form configuration formItem written during development, the name can also be obtained directly by viewing the id of the element in the page, as shown in the following figure, after the form-item-col- The content is name

formInput
- Input content of form items with input input box
- Parameter formItemName, which is the name value of formItem in the development code
- Parameter value，enter value
- Take instance use casetest/e2e/integration/pages/compute/instance.spec.js as an Example
```
it('successfully edit', () => {
  cy.tableSearchText(name)
    .clickActionInMore('Edit')
    .formInput('name', newname)
    .clickModalActionSubmitButton()
    .wait(2000);
});
```

formJsonInput

The form with the textarea input box enters the json format content
Parameter formItemName, which is the name value of formItem in the development code
Parameter content, the input object

Take create stack and write the parameter test/e2e/integration/pages/heat/stack.spec.js of type json as an example

it('successfully create', () => {
  const volumeJson = {
    name: volumeName,
  };
  cy.clickHeaderActionButton(0, 2000)
    .formAttachFile('content', contentFile)
    .formAttachFile('params', paramFile)
    .clickStepActionNextButton()
    .wait(2000)
    .formInput('name', name)
    .formJsonInput('volume_name_spec', volumeJson)
    .clickStepActionNextButton()
    .waitFormLoading()
    .wait(5000)
    .tableSearchSelectText('Name', name)
    .waitStatusActiveByRefresh();
});

formCheckboxClick

check checkbox in form
Parameter formItemName, which is the name value of formItem in the development code
Parameter index, default 0

Take instance resize test/e2e/integration/pages/compute/instance.spec.js as an example

it('successfully resize', () => {
  cy.tableSearchText(name)
    .clickActionInMoreSub('Resize', 'Configuration Update')
    .wait(5000)
    .formTableSelect('newFlavor')
    .formCheckboxClick('option')
    .clickModalActionSubmitButton()
    .waitStatusActiveByRefresh();
});

formTableSelectAll
- Click Select all checkbox of the selection type form select all item
- Parameter formItemName, which is the name value of formItem in the development code
- Take cloud hard disk type modification to access test/e2e/integration/pages/storage/volume-type.spec.js as an example
```
it('successfully manage access to projects', () => {
  cy.tableSearchText(name)
    .clickActionInMore('Manage Access')
    .formCheckboxClick('isPublic')
    .formTableSelectAll('access')
    .clickModalActionSubmitButton();
});
```
formTableNotSelectAll
- Click Select all checkbox of the selection type form cancel select all item
- Parameter formItemName, which is the name value of formItem in the development code
- Take the Host Aggregates management instance without selecting the instance as an example: test/e2e/integration/pages/compute/aggregate.spec.js
```
it('successfully manage host: no host', () => {
  cy.tableSearchText(newname)
    .clickActionInMore('Manage Host')
    .formTableNotSelectAll('hosts')
    .clickModalActionSubmitButton();
});
```

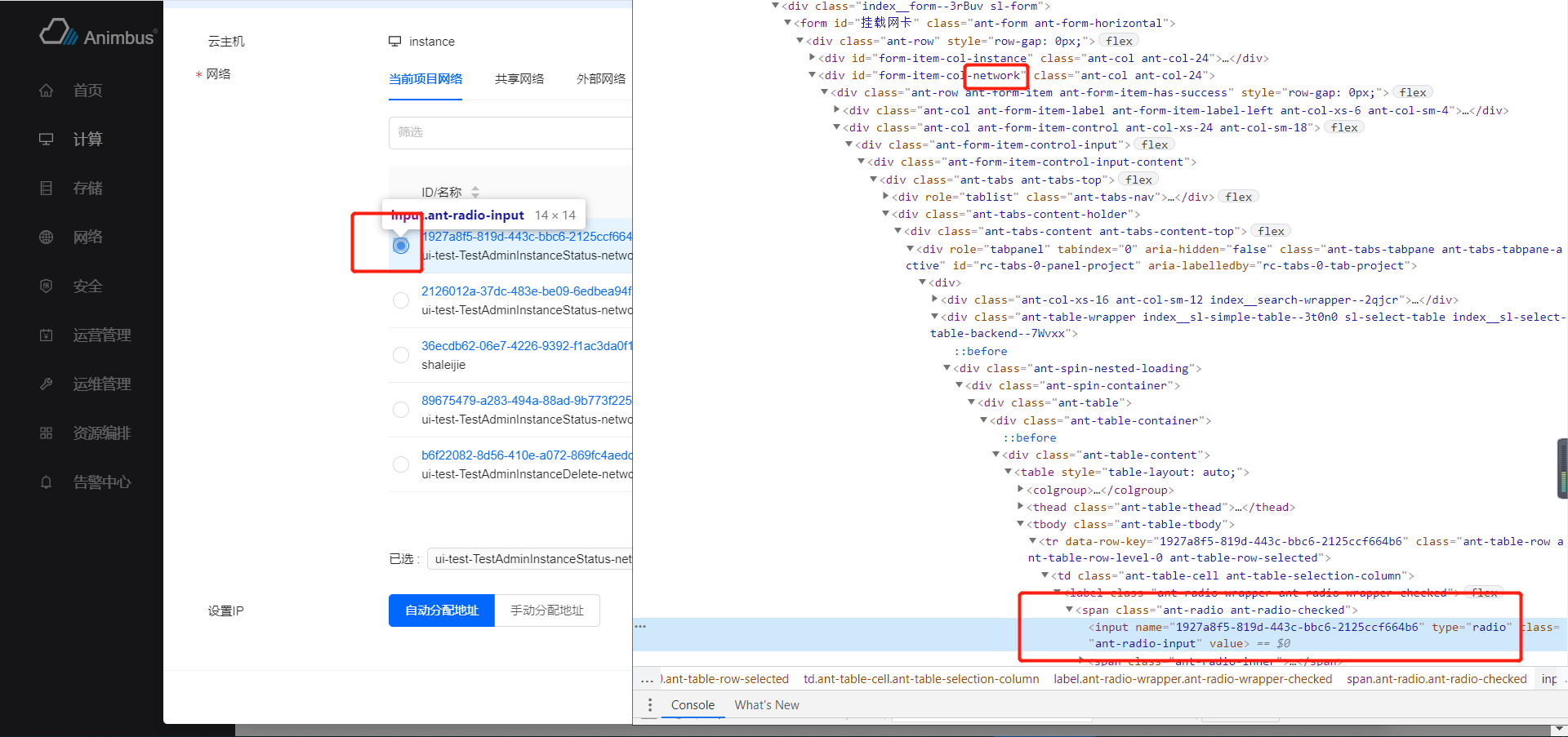

formTableSelect
- Click checkbox of the selection type form
- Parameter formItemName, which is the name value of formItem in the development code
- Parameter value, if you set value, select the entry in the table that contains the value, if you don’t set value, select the first entry in the table
- Take instance attach interface select networktest/e2e/integration/pages/compute/instance.spec.jsas an example
```
it('successfully attach interface', () => {
  cy.tableSearchText(name)
    .clickActionInMoreSub('Attach Interface', 'Related Resources')
    .wait(5000)
    .formTableSelect('network')
    .clickModalActionSubmitButton();
});
```
formTableSelectBySearch
- For the selection type form, first to search operation, and then select the first item in the table
- Parameter formItemName, which is the name value of formItem in the development code
- Parameter value, search content, generally a search for name in the search term
- Parameter waitTime, wait time after searching, default wait 2 seconds
- Take instance attach volume select volume test/e2e/integration/pages/compute/instance.spec.js as an example
  - After the operation is successful, enter the Volume list page to check the status of the volume as "used"
```
it('successfully attach volume', () => {
  // prepare volume
  cy.visitPage(listUrl)
    .tableSearchText(name)
    .clickActionInMoreSub('Attach Volume', 'Related Resources')
    .wait(5000)
    .formTableSelectBySearch('volume', volumeName)
    .clickModalActionSubmitButton()
    .wait(5000);

  // check attach successful
  cy.tableSearchText(name)
    .goToDetail()
    .clickDetailTab('Volumes')
    .tableSearchText(volumeName)
    .checkColumnValue(2, 'In-use');
});
```
formTableSelectBySearchOption
- For the selection type form, first to search operation, and then select the first item in the table
- Search is the selection of search item, which is different from formTableSelectBySearch which is based on input
- Parameter formItemName, which is the name value of formItem in the development code
- Parameter name， Search options name
- Parameter valueSearch options value
- Parameter waitTime，wait time after searching, default wait 2 seconds
- Take create full backup test/e2e/integration/pages/storage/backup.spec.js as an example
  - Select Volume that status is in used
```
it('successfully create full backup', () => {
  cy.clickHeaderActionButton(0, 5000)
    .formInput('name', name)
    .formTableSelectBySearch('volume', volumeName)
    .clickModalActionSubmitButton()
    .wait(5000)
    .waitTableLoading();

  cy.clickHeaderActionButton(0, 5000)
    .formInput('name', nameIns)
    .formTableSelectBySearchOption('volume', 'Status', 'In-use')
    .clickModalActionSubmitButton();

  cy.wait(30000);
});
```
formSelect
- Operations on form items of selector type
- Parameter formItemName, which is the name value of formItem in the development code
- Parameter label, the selected content, if not set, select the first option, if set, select the option corresponding to label
- Take create instance group select policy test/e2e/integration/pages/compute/server-group.spec.jsas an example
```
it('successfully create', () => {
  cy.clickHeaderActionButton(0)
    .formInput('name', name)
    .formSelect('policy')
    .clickModalActionSubmitButton();
});
```

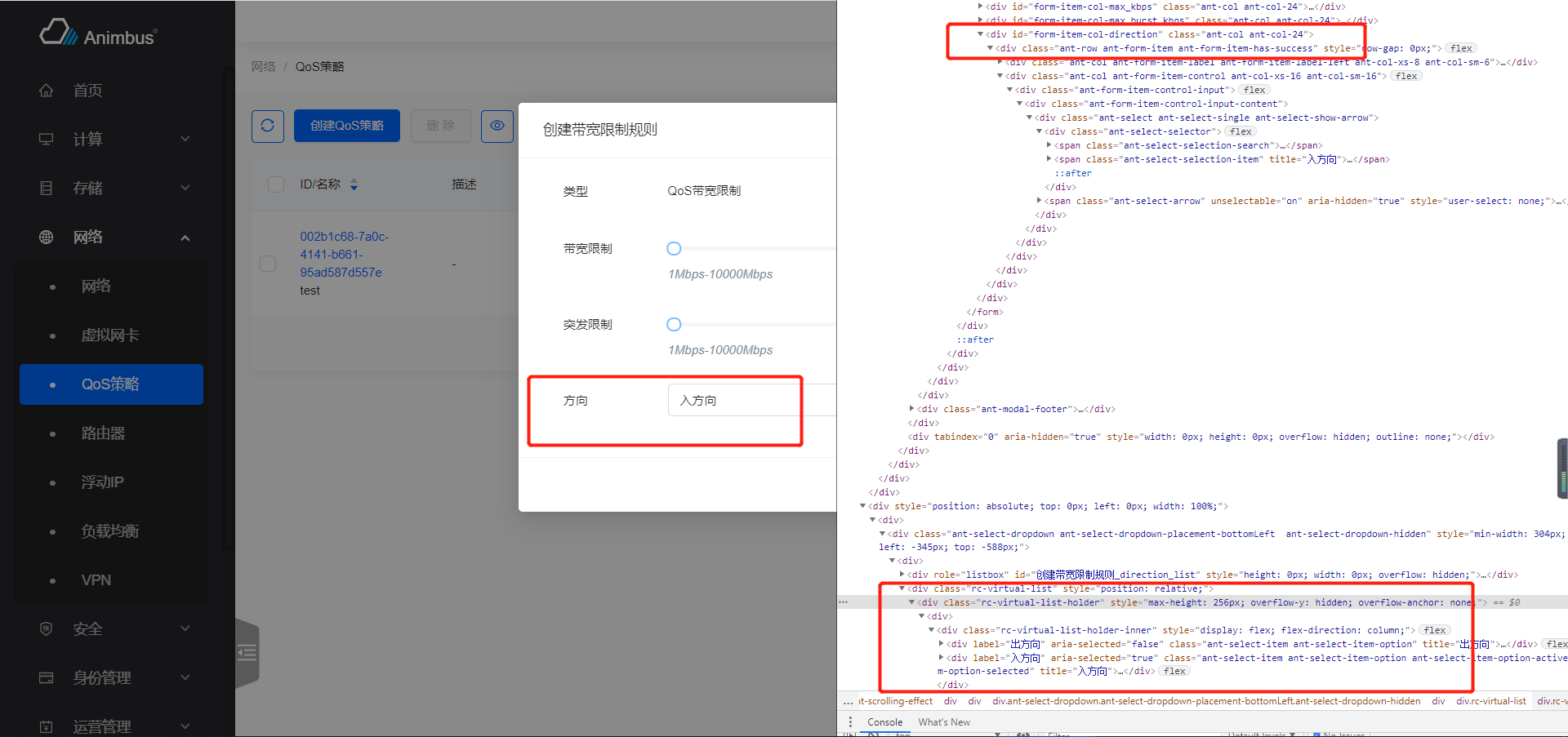

- Take the network QoS policy to create the bandwidth limit rule and set the direction to "inbound" as an example: test/e2e/integration/pages/network/qos-policy.spec.js
```
it('successfully create bandwidth ingress limit rule', () => {
  cy.tableSearchText(name)
    .clickActionInMore('Create Bandwidth Limit Rule')
    .formSelect('direction', 'ingress')
    .clickModalActionSubmitButton();
});
```

formRadioChoose

Operations on form items of radio type
Parameter formItemName, which is the name value of formItem in the development code
Parameter itemIndex, which item is selected, the default is 0, that is, the first item is selected

Take create a key, select "import key" test/e2e/integration/pages/compute/keypair.spec.js as an example

it('successfully create by file', () => {
  cy.clickHeaderActionButton(0)
    .formRadioChoose('type', 1)
    .formInput('name', nameByFile)
    .formAttachFile('public_key', filename)
    .clickModalActionSubmitButton()
    .tableSearchText(nameByFile)
    .checkTableFirstRow(nameByFile);
});

formAttachFile

Operations on form items of AttachFile type
Parameter formItemName, which is the name value of formItem in the development code
The parameter filename, the name of the uploaded file, the file needs to be saved in the test/e2e/fixtures directory in advance

Take the creation of a key selection file as an example as an example: test/e2e/integration/pages/compute/keypair.spec.js

it('successfully create by file', () => {
  cy.clickHeaderActionButton(0)
    .formRadioChoose('type', 1)
    .formInput('name', nameByFile)
    .formAttachFile('public_key', filename)
    .clickModalActionSubmitButton()
    .tableSearchText(nameByFile)
    .checkTableFirstRow(nameByFile);
});

Take create image select file test/e2e/integration/pages/compute/image.spec.js as an example

it('successfully create', () => {
  cy.clickHeaderActionButton(0)
    .url()
    .should('include', `${listUrl}/create`)
    .formInput('name', name)
    .formAttachFile('file', filename)
    .formSelect('disk_format', 'QCOW2 - QEMU Emulator')
    .formSelect('os_distro', 'Others')
    .formInput('os_version', 'cirros-0.4.0-x86_64')
    .formInput('os_admin_user', 'root')
    .formSelect('usage_type', 'Common Server')
    .formText('description', name)
    .clickFormActionSubmitButton()
    .wait(2000)
    .url()
    .should('include', listUrl)
    .tableSearchText(name)
    .waitStatusActiveByRefresh();
});

formAddSelectAdd

Operations on form item of AddSelect type
Parameter formItemName, which is the name value of formItem in the development code

Take the Host Aggregates management metadata add custom metadata as an example: test/e2e/integration/pages/compute/aggregate.spec.js

it('successfully manage metadata', () => {
  cy.tableSearchText(name)
    .clickActionInMore('Manage Metadata')
    .wait(5000)
    .formAddSelectAdd('customs')
    .formInputKeyValue('customs', 'key', 'value')
    .formTransferLeftCheck('systems', 0)
    .clickModalActionSubmitButton();
});

formSwitch
- Operations on form item of swith type
- Parameter formItemName, which is the name value of formItem in the development code
- Take the example of creating a network QoS policy test/e2e/integration/pages/network/qos-policy.spec.js with shared attributes
```
it('successfully create', () => {
  cy.clickHeaderActionButton(0)
    .wait(2000)
    .formInput('name', name)
    .formText('description', name)
    .formSwitch('shared')
    .clickModalActionSubmitButton();
});
```

formButtonClick

Click button on form
Parameter formItemName, which is the name value of formItem in the development code

Take the example of expanding/closing the "advanced option" test/e2e/integration/pages/identity/project.spec.js when the project update quota

it('successfully edit quota', () => {
  cy.tableSearchText(name)
    .clickActionInMore('Edit Quota')
    .formInput('instances', 11)
    .formButtonClick('more')
    .wait(2000)
    .formButtonClick('more')
    .clickModalActionSubmitButton();
});

formTransfer
- Operation on form item of transfer type
  1. Specify the items to be selected based on the search display in the transfer on the left
  2. Select the first item
  3. Click the direction button in the middle of the transfer to make the selected content enter the transfer on the right
- Parameter formItemName, which is the name value of formItem in the development code
- Parameter value, search content
- Take peoject management user test/e2e/integration/pages/identity/project.spec.jsas an example
```
it('successfully manage user', () => {
  cy.tableSearchText(name)
    .clickActionInMore('Manage User')
    .formTransfer('select_user', username)
    .formTransferRight('select_user', username)
    .formSelect('select_user', 'admin')
    .clickModalActionSubmitButton();
});
```

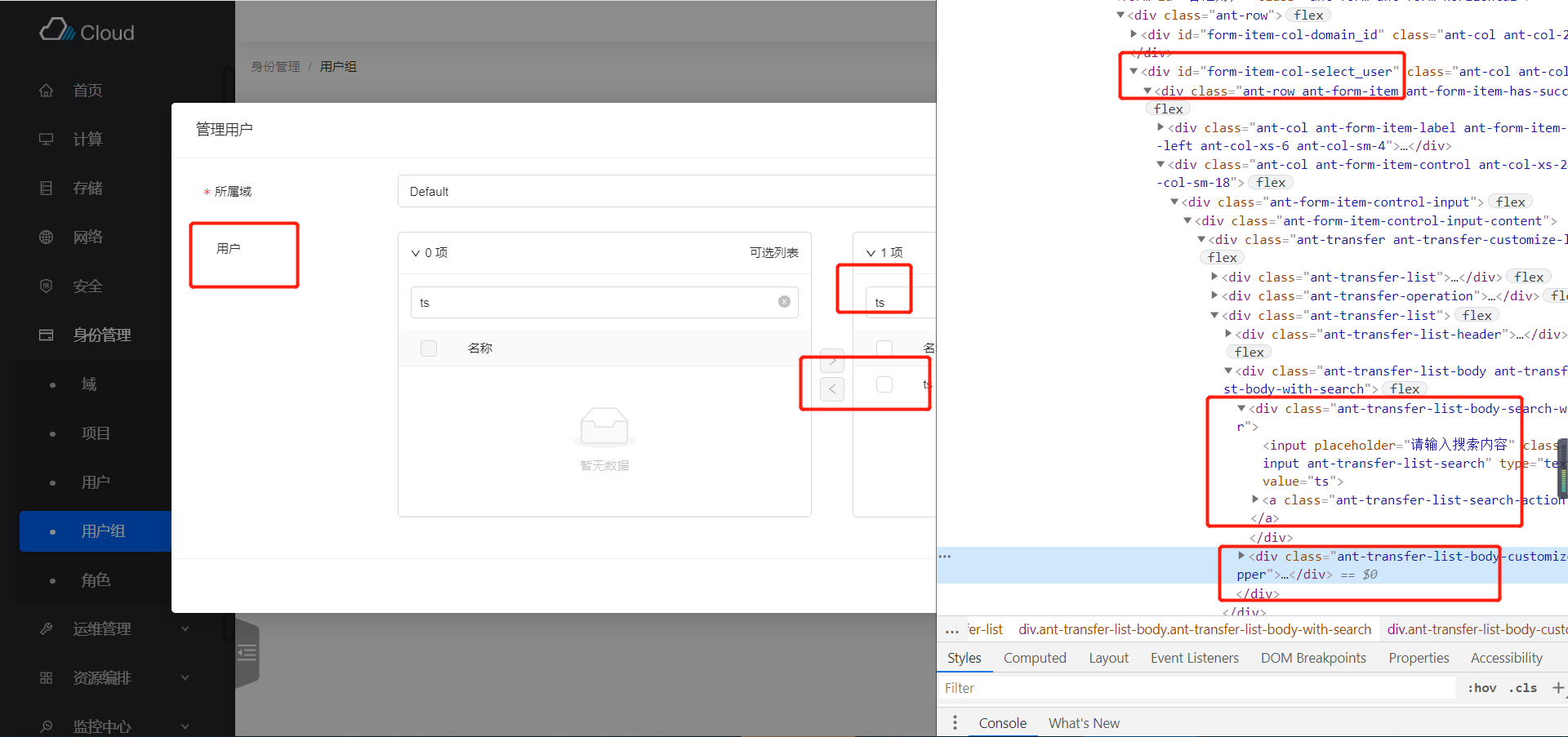

formTransferRight
- Specify the items to be selected based on the search display in the transfer on the right对右侧的穿梭框基于搜索展示指定待选条目
- Parameter formItemName, which is the name value of formItem in the development code
- Parameter value, search content
- Take the user group management user as an example: test/e2e/integration/pages/identity/user-group.spec.js
```
it('successfully manage user', () => {
  cy.tableSearchText(name)
    .clickActionInMore('Manage User')
    .formTransfer('select_user', username)
    .formTransferRight('select_user', username)
    .clickModalActionSubmitButton();

  cy.tableSearchText(name)
    .goToDetail()
    .clickDetailTab('Sub Users', 'userGroup');
});
```

formTabClick

Click tab in the form item with tab
Parameter formItemName, which is the name value of formItem in the development code
The parameter index, the subscript of the specified Tab

Take the example of editing the floating IP and switching to the sharing strategy test/e2e/integration/pages/network/floatingip.spec.js

it('successfully edit', () => {
  cy.clickFirstActionButton()
    .formText('description', 'description')
    .formTabClick('qos_policy_id', 1)
    .wait(5000)
    .formTableSelectBySearch('qos_policy_id', policyName)
    .clickModalActionSubmitButton()
    .wait(2000);
});

formInputKeyValue
- Input operations on the form items of the KeyValue component, generally used in conjunction with formAddSelectAdd, and enter the content of the item of the added new KeyValue component
- Parameter formItemName, which is the name value of formItem in the development code
- Parameter key, the content of input on the left
- Parameter value, the content of input on the right
- Take the Host Aggregates management metadata add custom metadata as an example: test/e2e/integration/pages/compute/aggregate.spec.js
```
it('successfully manage metadata', () => {
  cy.tableSearchText(name)
    .clickActionInMore('Manage Metadata')
    .wait(5000)
    .formAddSelectAdd('customs')
    .formInputKeyValue('customs', 'key', 'value')
    .formTransferLeftCheck('systems', 0)
    .clickModalActionSubmitButton();
});
```
formTransferLeftCheck
- Operation of the transfer on the left
  1. Select the specified item in the transfer on the left
  2. Click the direction button in the middle of the transfer to make the selected content enter the transfer on the right
- Parameter formItemName, which is the name value of formItem in the development code
- Parameter index, the index of the node
- Take the Host Aggregates management metadata add custom metadata as an example: test/e2e/integration/pages/compute/aggregate.spec.js
```
it('successfully manage metadata', () => {
  cy.tableSearchText(name)
    .clickActionInMore('Manage Metadata')
    .wait(5000)
    .formAddSelectAdd('customs')
    .formInputKeyValue('customs', 'key', 'value')
    .formTransferLeftCheck('systems', 0)
    .clickModalActionSubmitButton();
});
```

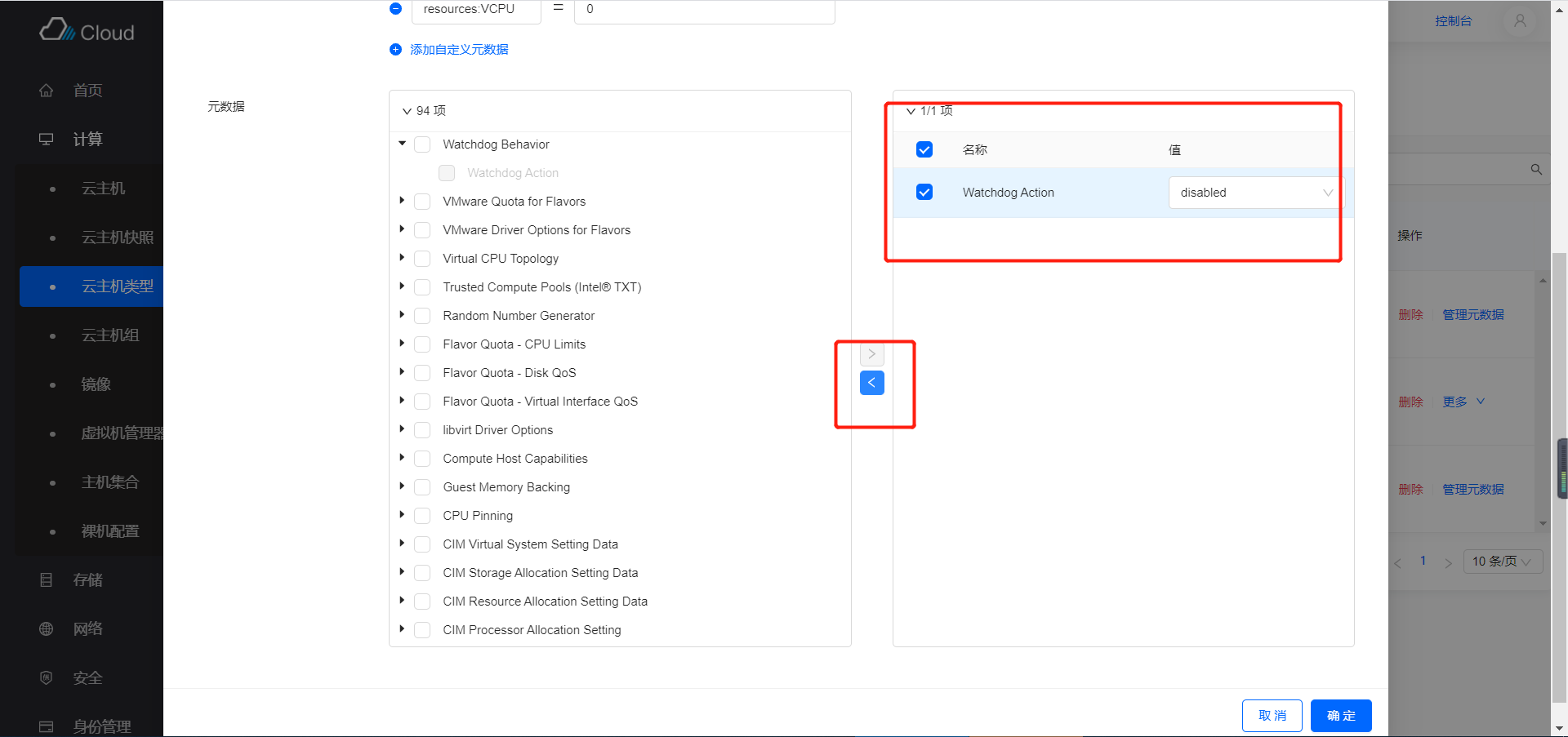

formTransferRightCheck

Operation of the transfer on the right
1. Select the specified item in the transfer on the right
2. Click the direction button in the middle of the transfer to make the selected content enter the transfer on the left
Parameter formItemName, which is the name value of formItem in the development code
Parameter index, the index of the transfer table item

Take instance type modify the metadata test/e2e/integration/pages/compute/flavor.spec.js as an example

it('successfully manage metadata', () => {
  cy.clickTab('Custom')
    .tableSearchText(customName)
    .clickActionButtonByTitle('Manage Metadata')
    .wait(5000)
    .formTransferLeftCheck('systems', 0)
    .clickModalActionSubmitButton();

  // todo: remove key-value metadata
  cy.clickTab('Custom')
    .tableSearchText(customName)
    .clickActionButtonByTitle('Manage Metadata')
    .wait(5000)
    .formTransferRightCheck('systems', 0)
    .clickModalActionSubmitButton();
});

For various operations of resource operations, the functions introduced above are mainly used. For the specific compilation of functions, please seetest/e2e/support/form-commands.js

23 KiB Raw Blame History Unescape Escape

Click the button operation

Operations on form

23 KiB

Raw Blame History
