Subunit2SQL Graphs

subunit2sql includes a utilty to generate various graphs from the data in a database. This is used to provide a more visual analysis of the data contained in the DB.

Installing subunit2sql-graph

The subunit2sql-graph entry point will be installed when you run install on the subunit2sql endpoint. However, there are a couple of additional dependencies needed to use it. These are listed as setuptools extras as they are fairly heavyweight and depend on several C libraries being present. To install the additional dependencies to use the graph command you can use:

pip install subunit2sql[graph]

or:

pip install $PATH_TO_subuni2sql[graph]

Using subunit2sql-graph

After you install subunit2sql and the additional dependencies you invoke the graph command with:

subunit2sql-graph

It is required that you also specify a database to tell the graph command to tell the graph command how to connect to the DB to use for generating the graph. This is done using the same syntax as other subunit2sql commands:

subunit2sql-graph --database-connection mysql://subunit:pass@127.0.0.1/subunit

The other common required argument is the output file which is -o or --output. This arg is a straight passthrough to a matplotlib call which uses the extension to generate the graph file. So make sure you're using the file format extension you want the output to be generated in.

You then provide a graph subcommand to tell subunit2sql-graph which type of graph to generate and provide any args needed to the command. Also, note that graph specific args must come after the graph on the CLI and general args must come before. This will likely change in the future, but at least for right now it's an existing issue.

There are currently 3 graphs that it can generate:

Run Time

This graph is used to show the run time of a single test over time. It generates a line graph displaying the time series data for successful run times for the specified test from the test_runs table.

For example running something like:

subunit2sql-graph --database-connection mysql://test:test@localhost/subunit2sql --output test.png --title 'Test Run Times' run_time 0291fc87-1a6d-4c6b-91d2-00a7bb5c63e6

will generate a graph like:

you can refer to the help on the graph command for run_time to see the full option list with something like:

subunit2sql-graph run_time --help

Failures

This graph is used to show the number of failures, successes, and skips of a single test over time. It generates a line graph displaying the time series data for each of these counts (grouped daily) as different line plots on the same graph.

For example running something like:

subunit2sql-graph --database-connection mysql://test:test@localhost/subunit2sql --output test.png --title 'Test Failure Count' failures 0291fc87-1a6d-4c6b-91d2-00a7bb5c63e6

will generate a graph like:

The command will also display the percentages of each status category, for example with the above command something like:

Fail Percentage: 0.2045%
Success Percentage: 99.7955%
Skip Percentage: 0.0000

will be printed to STDOUT.

You can refer to the help on the graph command for run_time to see the full option list with something like:

subunit2sql-graph failures --help

Aggregate Counts

This graph is used to show the aggregate number of failures, successes, and skips of multiple tests from the database. It a stacked bar graph showing the count of each category for all the provided tests. If no tests are provided this graph tries to use all the tests from the DB. (which depending on the data set can be difficult to render)

For example running something like:

subunit2sql-graph --database-connection mysql://test:test@localhost/subunit2sql --output test.png --title 'Test Failure Failures' agg_count

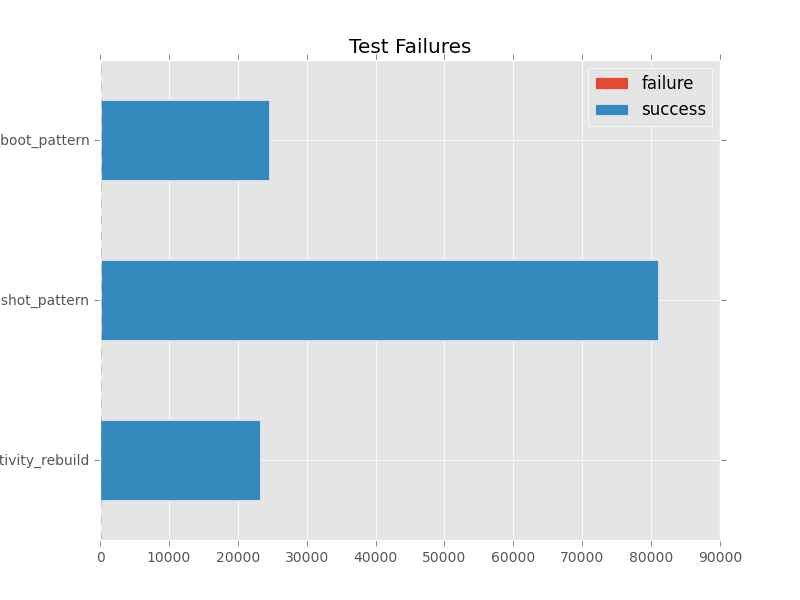

will generate a graph like:

you can refer to the help on the graph command for run_time to see the full option list with something like:

subunit2sql-graph failures --help
