Kubernetes prerequisites

Ingress controller

Ingress controller when deploying OpenStack on Kubernetes is essential to ensure proper external access for the OpenStack services.

We recommend using the ingress-nginx because it is simple and provides all necessary features. It utilizes Nginx as a reverse proxy backend. Here is how to deploy it.

First, let's create a namespace for the OpenStack workloads. The ingress controller must be deployed in the same namespace because OpenStack-Helm charts create service resources pointing to the ingress controller pods which in turn redirect traffic to particular Openstack API pods.

tee > /tmp/openstack_namespace.yaml <<EOF
apiVersion: v1
kind: Namespace
metadata:
  name: openstack
EOF
kubectl apply -f /tmp/openstack_namespace.yaml

Next, deploy the ingress controller in the openstack namespace:

helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
helm upgrade --install ingress-nginx ingress-nginx/ingress-nginx \
    --version="4.8.3" \
    --namespace=openstack \
    --set controller.kind=Deployment \
    --set controller.admissionWebhooks.enabled="false" \
    --set controller.scope.enabled="true" \
    --set controller.service.enabled="false" \
    --set controller.ingressClassResource.name=nginx \
    --set controller.ingressClassResource.controllerValue="k8s.io/ingress-nginx" \
    --set controller.ingressClassResource.default="false" \
    --set controller.ingressClass=nginx \
    --set controller.labels.app=ingress-api

You can deploy any other ingress controller that suits your needs best. See for example the list of available ingress controllers. Ensure that the ingress controller pods are deployed with the app: ingress-api label which is used by the OpenStack-Helm as a selector for the Kubernetes service resources.

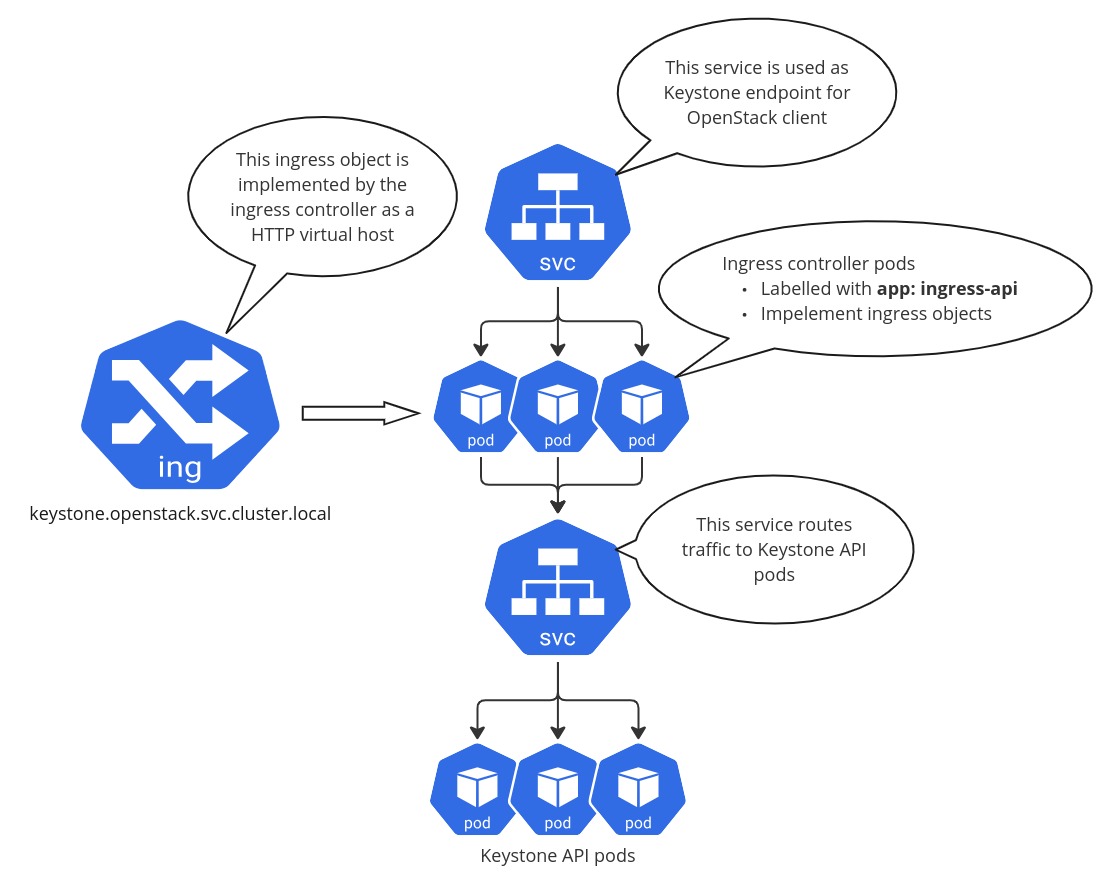

For example, the OpenStack-Helm keystone chart by default creates a service that redirects traffic to the ingress controller pods selected using the app: ingress-api label. Then it also creates an Ingress resource which the ingress controller then uses to configure its reverse proxy backend (Nginx) which eventually routes the traffic to the Keystone API service which works as an endpoint for Keystone API pods.

Note

For exposing the OpenStack services to the external world, we can a create service of type LoadBalancer or NodePort with the selector pointing to the ingress controller pods.

MetalLB

MetalLB is a load-balancer for bare metal Kubernetes clusters levereging L2/L3 protocols. This is a popular way of exposing the web applications running in Kubernetes to the external world.

The following commands can be used to deploy MetalLB:

tee > /tmp/metallb_system_namespace.yaml <<EOF
apiVersion: v1
kind: Namespace
metadata:
  name: metallb-system
EOF
kubectl apply -f /tmp/metallb_system_namespace.yaml

helm repo add metallb https://metallb.github.io/metallb
helm install metallb metallb/metallb -n metallb-system

Now it is necessary to configure the MetalLB IP address pool and the IP address advertisement. The MetalLB custom resources are used for this:

tee > /tmp/metallb_ipaddresspool.yaml <<EOF
---
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
    name: public
    namespace: metallb-system
spec:
    addresses:
    - "172.24.128.0/24"
EOF

kubectl apply -f /tmp/metallb_ipaddresspool.yaml

tee > /tmp/metallb_l2advertisement.yaml <<EOF
---
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
    name: public
    namespace: metallb-system
spec:
    ipAddressPools:
    - public
EOF

kubectl apply -f /tmp/metallb_l2advertisement.yaml

Next, let's create a service of type LoadBalancer which will the public endpoint for all OpenStack services that we will later deploy. The MetalLB will assign an IP address to it (we can assinged a dedicated IP using annotations):

tee > /tmp/openstack_endpoint_service.yaml <<EOF
---
kind: Service
apiVersion: v1
metadata:
  name: public-openstack
  namespace: openstack
  annotations:
    metallb.universe.tf/loadBalancerIPs: "172.24.128.100"
spec:
  externalTrafficPolicy: Cluster
  type: LoadBalancer
  selector:
    app: ingress-api
  ports:
    - name: http
      port: 80
    - name: https
      port: 443
EOF

kubectl apply -f /tmp/openstack_endpoint_service.yaml

This service will redirect the traffic to the ingress controller pods (see the app: ingress-api selector). OpenStack-Helm charts create Ingress resources which are used by the ingress controller to configure the reverse proxy backend so that the traffic eventually goes to particular Openstack API pods.

By default, the Ingress objects will only contain rules for the openstack.svc.cluster.local DNS domain. This is the internal Kubernetes domain and it is not supposed to be used outside the cluster.

You can use the host_fqdn_override for the endpoints to set an alternate hostname using a service like sslip.io. Assuming your services are exposed at 172.24.128.100 as is referenced in the Service above, you could use <service>.172-24-128-100.sslip.io

Here is an example of how to set the host_fqdn_override for the Keystone chart:

endpoints:
  identity:
    host_fqdn_override:
      public:
        host: "keystone.172-24-128-100.sslip.io"

Note

In production environments you probably choose to use a different DNS domain for public OpenStack endpoints. This is easy to achieve by setting the necessary chart values. All Openstack-Helm charts values have the endpoints section where you can specify the host_fqdn_override. In this case a chart will create additional Ingress resources to handle the external domain name and also the Keystone endpoint catalog will be updated.

Ceph

Ceph is a highly scalable and fault-tolerant distributed storage system. It offers object storage, block storage, and file storage capabilities, making it a versatile solution for various storage needs.

Kubernetes CSI (Container Storage Interface) allows storage providers like Ceph to implement their drivers, so that Kubernetes can use the CSI driver to provision and manage volumes which can be used by stateful applications deployed on top of Kubernetes to store their data. In the context of OpenStack running in Kubernetes, the Ceph is used as a storage backend for services like MariaDB, RabbitMQ and other services that require persistent storage. By default OpenStack-Helm stateful sets expect to find a storage class named general.

At the same time, Ceph provides the RBD API, which applications can utilize directly to create and mount block devices distributed across the Ceph cluster. For example the OpenStack Cinder utilizes this Ceph capability to offer persistent block devices to virtual machines managed by the OpenStack Nova.

The recommended way to manage Ceph on top of Kubernetes is by means of the Rook operator. The Rook project provides the Helm chart to deploy the Rook operator which extends the Kubernetes API adding CRDs that enable managing Ceph clusters via Kuberntes custom objects. There is also another Helm chart that facilitates deploying Ceph clusters using Rook custom resources.

For details please refer to the Rook documentation and the charts.

Note

The following script ceph-rook.sh (recommended for testing only) can be used as an example of how to deploy the Rook Ceph operator and a Ceph cluster using the Rook charts. Please note that the script places Ceph OSDs on loopback devices which is not recommended for production. The loopback devices must exist before using this script.

Once the Ceph cluster is deployed, the next step is to enable using it for services depoyed by OpenStack-Helm charts. The ceph-adapter-rook chart provides the necessary functionality to do this. The chart will prepare Kubernetes secret resources containing Ceph client keys/configs that are later used to interface with the Ceph cluster.

Here we assume the Ceph cluster is deployed in the ceph namespace.

helm upgrade --install ceph-adapter-rook openstack-helm-infra/ceph-adapter-rook \
    --namespace=openstack

helm osh wait-for-pods openstack

Node labels

Openstack-Helm charts rely on Kubernetes node labels to determine which nodes are suitable for running specific OpenStack components.

The following sets labels on all the Kubernetes nodes in the cluster including control plane nodes but you can choose to label only a subset of nodes where you want to run OpenStack:

kubectl label --overwrite nodes --all openstack-control-plane=enabled
kubectl label --overwrite nodes --all openstack-compute-node=enabled
kubectl label --overwrite nodes --all openvswitch=enabled
kubectl label --overwrite nodes --all linuxbridge=enabled

Note

The control plane nodes are tainted by default to prevent scheduling of pods on them. You can untaint the control plane nodes using the following command:

kubectl taint nodes -l 'node-role.kubernetes.io/control-plane' node-role.kubernetes.io/control-plane-
