English | Chinese

Application

The base class of each resource list page
Support data paging
Support search
Support manual refresh of data
Support data download

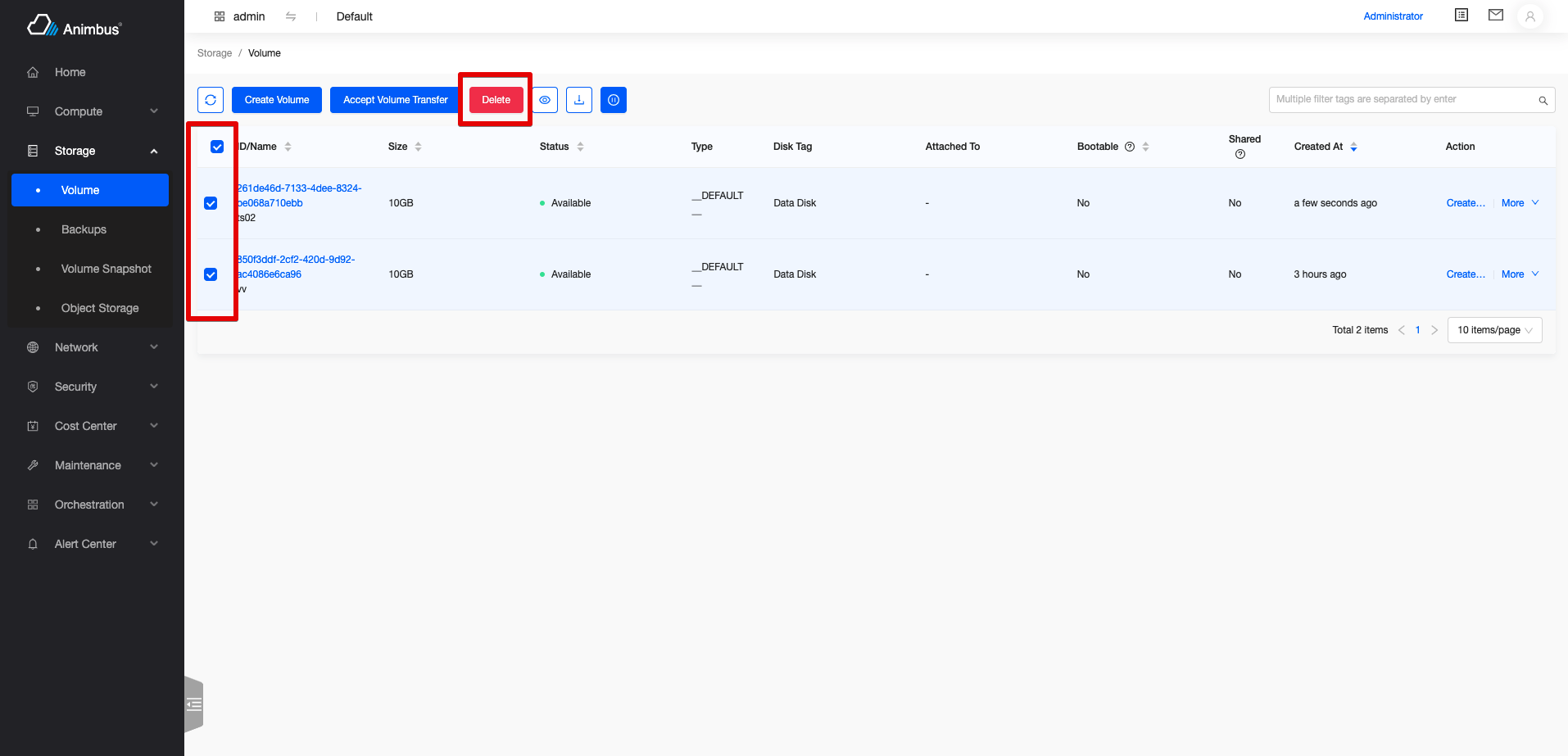

Support batch operation
With automatic data refresh function (automatically refresh the list data every 60 seconds, if the user does not operate, no automatic refresh after 30 minutes, the automatic refresh function can be paused)
Configurable list header
Each resource list page can be completed by copy function

BaseList code file

src/containers/List/index.jsx

BaseList Introduction to properties and function definitions

The resource list inherits from the BaseList component
Only need to copy some functions to complete the development of the page
Properties and functions are divided into the following four types,
- The poprs and functions that usually need to be overridden mainly include:
  - Page permissions
  - Resource name of the page
  - The configuration of the columns of the table
  - Search term for table
  - Operation items of the table, etc.
  - store corresponding to the table
- Functions and properties for on-demand overridden, mainly include:
  - Resource data paging uses front-end paging or back-end paging
  - Resource data sorting uses front-end sorting or back-end sorting
- Functions and properties that do not need to be overridden, mainly include:
  - Whether the current page is a management platform page
  - Whether the current page is the resource list in the details page
- The basic functions in the base class mainly include:
  - Render the page
  - Handling download
  - Handling automatic refresh
  - Hide/show some table columns
  - Handling search
  - Handling data request and display after the change of pagination information
- See below for a more detailed and comprehensive introduction

Properties and functions that usually need to be overridden

policy:
- The function must be overridden (Fill in the policy that complies with the openstack rules here)
- The permission corresponding to the page, if the permission verification fails, data cannot be requested.
- Take the volume src/pages/storage/containers/Volume/index.jsx as an example
```
get policy() {
  return 'volume:get_all';
}
```
aliasPolicy:
- The function can be overridden (Fill in the custom policy with module prefix here)
- The permission corresponding to the page, if the permission verification fails, data cannot be requested.
- Take the volume src/pages/storage/containers/Volume/index.jsx as an example
```
get aliasPolicy() {
  return 'cinder:volume:get_all';
}
```
name
- The function must be overridden
- The name corresponding to the page resource.
- Take the volume src/pages/storage/containers/Volume/index.jsx as an example
```
get name() {
  return t('volumes');
}
```
actionConfigs
- Various operations to configure resources
  - Main button operations, such as: create
  - Batch operation
  - Operation of each row of data
  - The configuration is defined in the actions directory of the resource
  - Take the keypair src/pages/compute/containers/Keypair/index.jsx as an example
```
import actionConfigs from './actions';
get actionConfigs() {
  return actionConfigs;
}
```
searchFilters
- Configure search terms for resources
- Support string-based search
- Support selected search, such as: state-based search
- Support multiple search conditions that need to be met
- Returns an array of configurations, each configuration represents a search condition
- Each configuration needs to meet the following conditions:
  - label, Required item, search title
  - name, Required item, the parameter Key corresponding to the search item
  - options, Optional
    - If the options attribute is not set, it means that the search is based on the input string, such as: search for names
    - If you set the options property, you need to select from options in the page
      - The format of options:

        key: required item, the value corresponding to option

        label: required item, the text corresponding to option, which is the content seen on the page
- Take the volume src/pages/storage/containers/Volume/index.jsx as an example
```
get searchFilters() {
  return [
    {
      label: t('Name'),
      name: 'name',
    },
    {
      label: t('Status'),
      name: 'status',
      options: ['available', 'in-use', 'error'].map((it) => ({
        key: it,
        label: volumeStatus[it],
      })),
    },
    {
      label: t('Shared'),
      name: 'multiattach',
      options: yesNoOptions,
    },];
}
```
getColumns
- Back to the configuration information list of the list table
- The settings of each configuration item:
  - title, Required item, the title of the header
  - dataIndex, Required item, the key value of the corresponding back-end data
  - hidden, Optional, whether the column can be hidden, the default value is false
  - sorter, Whether the column can be sorted, it can be sorted by default
  - stringify, Optional. When downloading to csv, the content displayed in the data in this column, because some columns have additional styles or UI processing, which will cause problems with the result of the string conversion of this column, you need to write at this time The function
  - render, Optional, the default is to display the content based on dataIndex, using this attribute, the table content can be rendered based on the result of render
  - valueRender, Optional, use existing functions to automatically process data
    - sinceTime, Processing time, displayed as "XX hours ago"
    - keepTime, To display the remaining time
    - yesNo, Process the Boolean value and display it as "Yes" or "No"
    - GBValue, Processing size, displayed as "XXXGB"
    - noValue, When there is no value, it is displayed as "-"
    - bytes, Processing size
    - uppercase, capital
    - formatSize, Processing size, such as "2.32 GB", "56.68 MB"
    - toLocalTime, Processing time, such as "2021-06-17 04:13:07"
    - toLocalTimeMoment, Processing time, such as "2021-06-17 04:13:07"
  - linkPrefix, Optional, when dataIndex=name, the linkPrefix attribute is used to process the prefix of the link corresponding to the name -Take the mirror src/pages/compute/containers/Image/Image.jsx as an example
  - The table contains columns: ID/name, project ID/name (displayed in the management platform), description, usage type, type, status, visibility, hard disk format, capacity, created in
```
getColumns = () => [
  {
    title: t('ID/Name'),
    dataIndex: 'name',
    routeName: this.getRouteName('imageDetail'),
  },
  {
    title: t('Project ID/Name'),
    dataIndex: 'project_name',
    hidden: !this.isAdminPage && this.tab !== 'all',
    sorter: false,
  },
  {
    title: t('Description'),
    dataIndex: 'description',
    isHideable: true,
    sorter: false,
  },
  {
    title: t('Use Type'),
    dataIndex: 'usage_type',
    isHideable: true,
    render: (value) => imageUsage[value] || value,
    sorter: false,
  },
  {
    title: t('Type'),
    dataIndex: 'os_distro',
    isHideable: true,
    render: (value) => <ImageType type={value} title={value} />,
    width: 80,
    sorter: false,
  },
  {
    title: t('Status'),
    dataIndex: 'status',
    render: (value) => imageStatus[value] || value,
  },
  {
    title: t('Visibility'),
    dataIndex: 'visibility',
    render: (value) => imageVisibility[value] || value,
    sorter: false,
  },
  {
    title: t('Disk Format'),
    dataIndex: 'disk_format',
    isHideable: true,
    render: (value) => imageFormats[value] || value,
  },
  {
    title: t('Size'),
    dataIndex: 'size',
    isHideable: true,
    valueRender: 'formatSize',
  },
  {
    title: t('Created At'),
    dataIndex: 'created_at',
    isHideable: true,
    valueRender: 'sinceTime',
  },
];
```
init
- The function to configure the Store. In this function, the Store used to process data requests and the Store used to download data are configured
- Usually a singleton Store is used, but for the list page under some detail pages, use new XXXStore()
- this.store and this.downloadStore can be configured in init
  - this.store is used to process list data
  - this.downloadStore is used to process download data
  - If you use the front-end page, only configure this.store, because all the data is obtained at once, and the downloaded data is equal to the data in the list, that is, at this time, this.downloadStore = this.store
    - Take the project src/pages/identity/containers/Project/index.jsx as an example
```
init() {
  this.store = globalProjectStore;
}
```
  - If you use back-end paging, you need to configure this.store and this.downloadStore separately
    - Take the router src/pages/network/containers/Router/index.jsx as an example
```
init() {
  this.store = new RouterStore();
  this.downloadStore = new RouterStore();
}
```

Properties and functions for on-demand overridden

alsoRefreshDetail
- When the list data in the detail page is refreshed, do you need to refresh the detail data synchronously?
- Default synchronous refresh, if you don't need to refresh synchronously, override this function
```
get alsoRefreshDetail() {
  return false;
}
```
list
- Data in the store of the page object
- The default value is this.store.list
rowKey
- Key for unique identification of list data
- The default value is id
- Take the key Keypair src/pages/compute/containers/Keypair/index.jsx as an example
```
get rowKey() {
  return 'name';
}
```
hasTab
- Whether the list page is the list page under Tab
- The default value is false
- The height of the table will be adjusted according to the changed value
- Take src/pages/configuration/containers/SystemInfo/Catalog.jsx as an example
```
get hasTab() {
  return true;
}
```
hideCustom
- Whether to display the header configuration icon
- The default value is true
- Take src/pages/configuration/containers/Setting/index.jsx as an example
```
get hideCustom() {
  return 'name';
}
```
hideSearch
- Whether to show the search box
- Default Display
- Take resource arrangement-stack-detail page-log src/pages/heat/containers/Stack/Detail/Event.jsx as an example
```
get hideSearch() {
  return true;
}
```
hideRefresh
- Whether to show the automatic refresh button
- Default Display
- If not displayed, the list does not have the function of automatically refreshing data
hideDownload
- Whether to show the download button
- Default Display
checkEndpoint
- Do you need to detect endpoints
- Not required by default
- Some services may not be deployed and require secondary verification. Once the test is not deployed, the "not open" style page will be displayed
- Take VPN src/pages/network/containers/VPN/index.jsx as an example
```
get checkEndpoint() {
  return true;
}
```
endpoint
- Used when checkEndpoint is true
- Take VPNsrc/pages/network/containers/VPN/index.jsx as an example
```
get endpoint() {
  return vpnEndpoint();
}
```
isFilterByBackend
- Whether to page by the backend
- The default value is false, that is, using front-end paging
- When using front-end paging, all data is obtained from the back-end at one time, and then the data is displayed according to the page number and the number of single pages in the page
- When using back-end paging, request the corresponding amount of data from the back-end in the number of pages and single pages
- Take the router src/pages/network/containers/Router/index.jsx as an example
```
get isFilterByBackend() {
  return true;
}
```
isSortByBackend
- Whether to be sorted by the backend
- The default value is false, that is, using front-end sorting
- When using front-end sorting, sort based on the size of the data in the list (customizable sorting function)
  - If you use front-end paging + front-end sorting, you can sort based on all data
  - If you use back-end paging + front-end sorting, you can only sort data based on the current page
- When using back-end paging, request data from the back-end according to the sort item and sort direction set in the list
- Take the router src/pages/network/containers/Router/index.jsx as an example
```
get isSortByBackend() {
  return true;
}
```
- When isSortByBackend is set to true, it is usually necessary to rewrite the updateParamsSortPage function in the corresponding store
- Take src/stores/neutron/router.js as an example
```
updateParamsSortPage = (params, sortKey, sortOrder) => {
  if (sortKey && sortOrder) {
    params.sort_key = sortKey;
    params.sort_dir = sortOrder === 'descend' ? 'desc' : 'asc';
  }
};
```
adminPageHasProjectFilter
- Does the search item of the management platform contain the search based on the project ID?
- The default value is false
- Take the instance src/pages/compute/containers/Instance/index.jsx as an example
```
get adminPageHasProjectFilter() {
  return true;
}
```
transitionStatusList
- The corresponding state value list when the data is in the transition state
- The default value is an empty list of []
- When the data is in a transitional state, the automatic refresh of the page will speed up and become once every 30 seconds
- The default value is false
- Take the volume src/pages/storage/containers/Volume/index.jsx as an example
```
const volumeTransitionStatuses = [
  'creating',
  'extending',
  'downloading',
  'attaching',
  'detaching',
  'deleting',
  'backing-up',
  'restoring-backup',
  'awaiting-transfer',
  'uploading',
  'rollbacking',
  'retyping',
];
get transitionStatusList() {
  return volumeTransitionStatuses;
}
```
fetchDataByAllProjects
- When the management platform requests data, whether it is with the all_projects parameter
- The default value is true
- Take the volume type src/pages/storage/containers/VolumeType/VolumeType/index.jsx as an example
```
get fetchDataByAllProjects() {
  return false;
}
```
fetchDataByCurrentProject
- Whether to include the project_id parameter when the console requests data
- The default value is false
- Take floating ip src/pages/network/containers/FloatingIp/index.jsx as an example
```
get fetchDataByCurrentProject() {
  return true;
}
```
defaultSortKey
- When using backend sorting, the default sort Key
- Take the router src/pages/network/containers/Router/index.jsx as an example
```
get defaultSortKey() {
  return 'status';
}
```
clearListUnmount
- When the page is switched, do you need the list data in the current store?
- Generally speaking, the resource list page uses GlobalXXStore, which is a singleton store. When the page is switched, the list data will not be cleared. When returning to the page, the previous data will be displayed first, and then the page will automatically refresh to obtain the new data
- The default value is false, The data is not cleared when the page is switched
ableAutoFresh
- Whether to refresh automatically
- The default value is true
projectFilterKey
- When requested, the key value corresponding to the project
- The default value is project_id
- Take the image src/pages/compute/containers/Image/Image.jsx as an example
```
get projectFilterKey() {
  return 'owner';
}
```
getCheckboxProps
- Whether the data in the list can be selected, and batch operations can be performed after selection
- Both can be selected by default
- Take the instance src/pages/compute/containers/Instance/index.jsx as an example
  - Bare metal instances cannot be selected
```
getCheckboxProps(record) {
  return {
    disabled: isIronicInstance(record),
    name: record.name,
  };
}
```
getData
- Functions for processing data requests
- By default, use the store.fetchList or store.fetchListByPage method to get data from the server
- It is not recommended to copy this function
fetchDataByPage
- When using back-end paging, the function to process data requests
- Use the store.fetchListByPage method to fetch data by default
- It is not recommended to copy this function
fetchData
- When using front-end paging, the function to process data requests
- Use the store.fetchList method to get data by default
- It is not recommended to copy this function
updateFetchParamsByPage
- When using back-end paging, a function to adjust request parameters based on the base class
- If the default parameters of the base class cannot meet the request, it is recommended to copy the function and synchronously modify the listDidFetch method in the corresponding store to complete the data request
updateFetchParams
- When using front-end paging, the function to adjust request parameters based on the base class
- If the default parameters of the base class cannot meet the request, it is recommended to copy the function and synchronously modify the listDidFetch method in the corresponding store to complete the data request
updateHints
- Tips on the form

Properties and functions that do not need to be overridden

inDetailPage
- Identifies whether the current page is a list page under the details page
location
- Page routing information
isAdminPage
- Is the current page a "management platform" page
hasAdminRole
- Whether the logged-in user role has an administrator role
getRoutePath
- Function to generate page URL
- For example, it is necessary to provide a jump function to the associated resources of the list page. Using this function, you can jump to the corresponding address of the console in the console, and jump to the corresponding address of the management platform in the management platform.
params
- Parameter information carried by the route
- Generally used to generate the parameters of the page request API
routing
- Routing information corresponding to the page
isLoading
- Whether the current page is updating data, the loading style will be displayed when updating
endpointError
- Determine whether Endpoint is valid
hintHeight
- The height of the prompt in the page
tableTopHeight
- The height occupied above the table
- Based on prompt, Tab calculation
tableHeight
- Table height
currentProjectId
- Project ID to which the currently logged-in user belongs
defaultSortOrder
- When using backend sorting, the default sorting direction is descending descend
itemInTransitionFunction
- Determine whether there is data in the transition state, if there is data in the transition state, the time interval for automatically refreshing the data is changed from 60 seconds to 30 seconds
primaryActions
- Main button operation list
batchActions
- Batch operation list
itemActions
- List of operations corresponding to each row of data

Basic functions in the base class

It is recommended to check the code understanding, src/containers/List/index.jsx

21 KiB Raw Blame History

Application

BaseList code file

BaseList Introduction to properties and function definitions

Properties and functions that usually need to be overridden

Properties and functions for on-demand overridden

Properties and functions that do not need to be overridden

Basic functions in the base class

21 KiB

Raw Blame History
